# 前言

本篇文章简单介绍矩阵乘的加速方法，以学习算子加速需要注意的方面。想要学习更多内容可以参考《OpenBLAS gemm 从零入门》，《BLISlab: A Sandbox for Optimizing GEMM》，道阻且长_再探矩阵乘法优化，《How To Optimize GEMM》等项目或文章。

作为初学者，错误在所难免，还望不吝赐教。

# 1. 基准算法

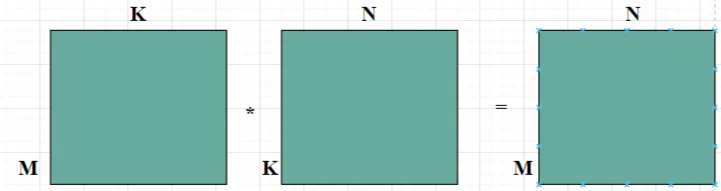

1.基准算法

矩阵乘运算的基准算法，未经过任何优化。矩阵以行主序进行排布，针对 X86 平台。矩阵 C= A * B，A 矩阵为 (M,K)， B 矩阵为 (K,N)。

	#include <stdio.h>

	#define A( i, j ) a[ (i)*lda + (j) ]
	#define B( i, j ) b[ (i)*ldb + (j) ]
	#define C( i, j ) c[ (i)*ldc + (j) ]
	// gemm C = A * B + C
	void MatrixMultiply(int m, int n, int k, float a, int lda, float b, int ldb, float *c, int ldc)
	{
	for(int i = 0; i < m; i++){
	for (int p=0; p<k; p++ ){
	for (int j=0; j<n; j++ ){
	C(i, j) = C(i, j) + A(i, p) * B(p, j);
	}
	}
	}
	}
	void GemmAccelerate(){
	int M = 16;
	int K = 64;
	int N = 16;
	float* MatriA = (float)malloc(sizeof(float) M*K);
	float* MatriB = (float)malloc(sizeof(float) K*N);
	float* MatriC = (float)malloc(sizeof(float) M*N);
	for(int index=0; index<MK; index<MK; index++){
	MatriA[index] = 1;
	}
	for(int index=0; index<K*N; index++){
	MatriB[index] = 1;
	}
	MatrixMultiply(M,N,K,MatriA,K,MatriB,N,MatriC,N);
	}

# 循环展开

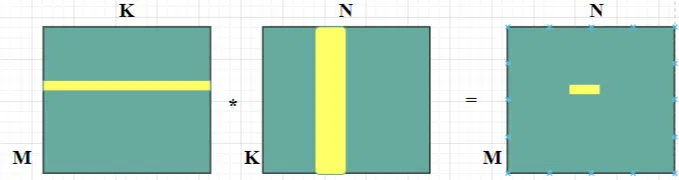

2.循环展开

引入循环展开（Loop Unrolling），每次 A 矩阵一行和 B 四列进行计算，得到四个结果。
可以减少循环控制开销：减少了循环条件检查和更新的频率，因为现在每四个元素作为一个批次处理，理论上减少了 75% 的循环控制指令。

	#include <stdio.h>

	#define A(i,j) a[ (i)*lda + (j) ]
	#define B(i,j) b[ (i)*ldb + (j) ]
	#define C(i,j) c[ (i)*ldc + (j) ]
	#define Y(i) y[ (i)*incx ]

	void AddDot( int k, float x, int incx, float y, float *gamma )
	{
	int p;

	for ( p=0; p<k; p++ ){
	gamma += x[p] Y(p);
	}
	}

	void MY_MMult2( int m, int n, int k, float *a, int lda,
	float b, int ldb, float c, int ldc )
	{
	int i, j;

	for ( j=0; j<n; j+=4 ){ /* Loop over the columns of C, unrolled by 4 */
	for ( i=0; i<m; i+=1 ){ /* Loop over the rows of C */
	AddDot( k, &A( i,0 ), lda, &B( 0,j ), &C( i,j ) );
	AddDot( k, &A( i,0 ), lda, &B( 0,j+1 ), &C( i,j+1 ) );
	AddDot( k, &A( i,0 ), lda, &B( 0,j+2 ), &C( i,j+2 ) );
	AddDot( k, &A( i,0 ), lda, &B( 0,j+3 ), &C( i,j+3 ) );
	}
	}
	}

	void GemmAccelerate(){
	int M = 16;
	int K = 64;
	int N = 16;
	float* MatriA = (float)malloc(sizeof(float) M*K);
	float* MatriB = (float)malloc(sizeof(float) K*N);
	float* MatriC = (float)malloc(sizeof(float) M*N);
	for(int index=0; index<MK; index<MK; index++){
	MatriA[index] = 1;
	}
	for(int index=0; index<K*N; index++){
	MatriB[index] = 1;
	}
	MY_MMult2(M,N,K,MatriA,K,MatriB,N,MatriC,N);
	}

# 3. 使用寄存器

中间计算结果使用寄存器存储，可以减少内存访问次数，可以显著提升性能，因为寄存器访问速度远快于内存访问。

	#include <stdio.h>

	#define A(i,j) a[ (i)*lda + (j) ]
	#define B(i,j) b[ (i)*ldb + (j) ]
	#define C(i,j) c[ (i)*ldc + (j) ]

	/* Routine for computing C = A * B + C */

	void AddDot1x4( int k, float a, int lda, float b, int ldb, float *c, int ldc )
	{

	int p;
	register float c_00_reg, c_01_reg, c_02_reg, c_03_reg, a_0p_reg;
	c_00_reg = 0.0;
	c_01_reg = 0.0;
	c_02_reg = 0.0;
	c_03_reg = 0.0;

	for ( p=0; p<k; p++ ){
	a_0p_reg = A( 0, p );

	c_00_reg += a_0p_reg * B( p, 0 );
	c_01_reg += a_0p_reg * B( p, 1 );
	c_02_reg += a_0p_reg * B( p, 2 );
	c_03_reg += a_0p_reg * B( p, 3 );
	}

	C( 0, 0 ) += c_00_reg;
	C( 0, 1 ) += c_01_reg;
	C( 0, 2 ) += c_02_reg;
	C( 0, 3 ) += c_03_reg;
	}

	void MY_MMult_1x4_6( int m, int n, int k, float a, int lda, float b, int ldb, float *c, int ldc )
	{
	int i, j;

	for ( j=0; j<n; j+=4 ){ /* Loop over the columns of C, unrolled by 4 */
	for ( i=0; i<m; i+=1 ){ /* Loop over the rows of C */
	AddDot1x4( k, &A( i,0 ), lda, &B( 0,j ), ldb, &C( i,j ), ldc );
	}
	}
	}

	void GemmAccelerate(){
	int M = 16;
	int K = 64;
	int N = 16;
	float* MatriA = (float)malloc(sizeof(float) M*K);
	float* MatriB = (float)malloc(sizeof(float) K*N);
	float* MatriC = (float)malloc(sizeof(float) M*N);
	for(int index=0; index<MK; index<MK; index++){
	MatriA[index] = 1;
	}
	for(int index=0; index<K*N; index++){
	MatriB[index] = 1;
	}
	MY_MMult_1x4_6(M,N,K,MatriA,K,MatriB,N,MatriC,N);
	}

# 4. 避免乘法

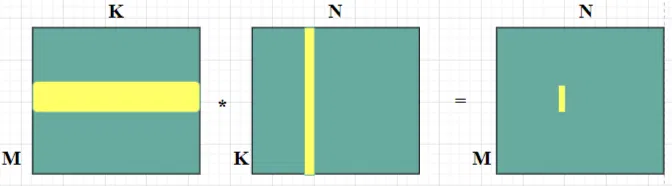

4.避免乘法

本次算法相对上一个，调整了循环展开的矩阵（从矩阵 B 变成了矩阵 A）。最内层循环中的 c_00_reg += a_0p_reg * B( p, 0 ); 变成 c_00_reg += b_0p_reg * *ap0_pntr++; ，即用指针的累加替换了原来的 B( p, 0 ) ，使得最内层循环减少了 4 个乘法。

调整循环展开矩阵的原因是行主序，矩阵 A 在内存中是连续的。

避免乘法：通常来讲乘法消耗的时间长于加法，效率差异取决于具体的硬件平台。减少乘法计算量可以提高算法效率。

	#include <stdio.h>

	#define A(i,j) a[ (i)*lda + (j) ]
	#define B(i,j) b[ (i)*ldb + (j) ]
	#define C(i,j) c[ (i)*ldc + (j) ]

	/* Routine for computing C = A * B + C */

	void AddDot1x4( int k, float a, int lda, float b, int ldb, float *c, int ldc )
	{
	int p;
	register float
	c_00_reg, c_01_reg, c_02_reg, c_03_reg, b_0p_reg;
	float
	ap0_pntr, ap1_pntr, ap2_pntr, ap3_pntr;

	ap0_pntr = &A( 0, 0 );
	ap1_pntr = &A( 1, 0 );
	ap2_pntr = &A( 2, 0 );
	ap3_pntr = &A( 3, 0 );

	c_00_reg = 0.0;
	c_01_reg = 0.0;
	c_02_reg = 0.0;
	c_03_reg = 0.0;

	for ( p=0; p<k; p++ ){
	b_0p_reg = B( p, 0 );

	c_00_reg += b_0p_reg * *ap0_pntr++;
	c_01_reg += b_0p_reg * *ap1_pntr++;
	c_02_reg += b_0p_reg * *ap2_pntr++;
	c_03_reg += b_0p_reg * *ap3_pntr++;
	}

	C( 0, 0 ) += c_00_reg;
	C( 1, 0 ) += c_01_reg;
	C( 2, 0 ) += c_02_reg;
	C( 3, 0 ) += c_03_reg;
	}

	void MY_MMult_1x4_7( int m, int n, int k, float a, int lda, float b, int ldb, float *c, int ldc )
	{
	int i, j;

	for ( j=0; j<n; j+=1 ){ /* Loop over the columns of C, unrolled by 4 */
	for ( i=0; i<m; i+=4 ){ /* Loop over the rows of C */
	AddDot1x4( k, &A( i,0 ), lda, &B( 0,j ), ldb, &C( i,j ), ldc );
	}
	}
	}

	void GemmAccelerate(){
	int M = 16;
	int K = 64;
	int N = 16;
	float* MatriA = (float)malloc(sizeof(float) M*K);
	float* MatriB = (float)malloc(sizeof(float) K*N);
	float* MatriC = (float)malloc(sizeof(float) M*N);
	for(int index=0; index<MK; index<MK; index++){
	MatriA[index] = 1;
	}
	for(int index=0; index<K*N; index++){
	MatriB[index] = 1;
	}
	MY_MMult_1x4_7(M,N,K,MatriA,K,MatriB,N,MatriC,N);
	}

# 5. 进一步循环展开

将最内部的循环也展开，即原本的 for ( p=0; p<k; p++ ) 变成 for ( p=0; p<k; p+=4 ) ，内部计算的内容变成原来的四倍。当然也开辟了更多的寄存器。

	#include <stdio.h>

	#define A(i,j) a[ (i)*lda + (j) ]
	#define B(i,j) b[ (i)*ldb + (j) ]
	#define C(i,j) c[ (i)*ldc + (j) ]

	/* Routine for computing C = A * B + C */

	void AddDot1x4( int k, float a, int lda, float b, int ldb, float *c, int ldc )
	{


	int p;
	register float c_00_reg, c_01_reg, c_02_reg, c_03_reg, b_0p_reg;
	float ap0_pntr, ap1_pntr, ap2_pntr, ap3_pntr;
	ap0_pntr = &A( 0, 0 );
	ap1_pntr = &A( 1, 0 );
	ap2_pntr = &A( 2, 0 );
	ap3_pntr = &A( 3, 0 );

	c_00_reg = 0.0;
	c_01_reg = 0.0;
	c_02_reg = 0.0;
	c_03_reg = 0.0;

	for ( p=0; p<k; p+=4 ){
	b_0p_reg = B( p, 0 );

	c_00_reg += b_0p_reg * *ap0_pntr++;
	c_01_reg += b_0p_reg * *ap1_pntr++;
	c_02_reg += b_0p_reg * *ap2_pntr++;
	c_03_reg += b_0p_reg * *ap3_pntr++;

	b_0p_reg = B( p+1, 0 );

	c_00_reg += b_0p_reg * *ap0_pntr++;
	c_01_reg += b_0p_reg * *ap1_pntr++;
	c_02_reg += b_0p_reg * *ap2_pntr++;
	c_03_reg += b_0p_reg * *ap3_pntr++;

	b_0p_reg = B( p+2, 0 );

	c_00_reg += b_0p_reg * *ap0_pntr++;
	c_01_reg += b_0p_reg * *ap1_pntr++;
	c_02_reg += b_0p_reg * *ap2_pntr++;
	c_03_reg += b_0p_reg * *ap3_pntr++;

	b_0p_reg = B( p+3, 0);

	c_00_reg += b_0p_reg * *ap0_pntr++;
	c_01_reg += b_0p_reg * *ap1_pntr++;
	c_02_reg += b_0p_reg * *ap2_pntr++;
	c_03_reg += b_0p_reg * *ap3_pntr++;
	}

	C( 0, 0 ) += c_00_reg;
	C( 1, 0 ) += c_01_reg;
	C( 2, 0 ) += c_02_reg;
	C( 3, 0 ) += c_03_reg;
	}

	void MY_MMult_1x4_8( int m, int n, int k, float a, int lda,float b, int ldb,float *c, int ldc )
	{
	int i, j;

	for ( j=0; j<n; j+=1 ){ /* Loop over the columns of C, unrolled by 4 */
	for ( i=0; i<m; i+=4 ){ /* Loop over the rows of C */
	AddDot1x4( k, &A( i,0 ), lda, &B( 0,j ), ldb, &C( i,j ), ldc );
	}
	}
	}

	void GemmAccelerate(){
	int M = 16;
	int K = 64;
	int N = 16;
	float* MatriA = (float)malloc(sizeof(float) M*K);
	float* MatriB = (float)malloc(sizeof(float) K*N);
	float* MatriC = (float)malloc(sizeof(float) M*N);
	for(int index=0; index<MK; index<MK; index++){
	MatriA[index] = 1;
	}
	for(int index=0; index<K*N; index++){
	MatriB[index] = 1;
	}
	MY_MMult_1x4_8(M,N,K,MatriA,K,MatriB,N,MatriC,N);
	}

# 6. 使用 SIMD 指令

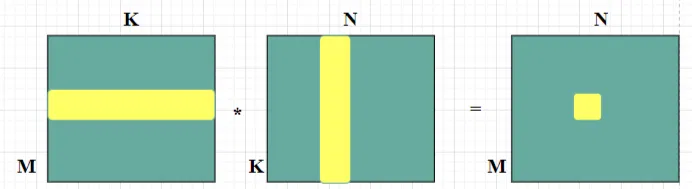

6.使用指令

SIMD 指令是单指令多数据，以 X86 平台的 SSE2 为例，其支持 128 的寄存器，一次性可以计算 4 个 float 或 int 数据，能够提高算法的并行度。

代码中的 SSE 指令 _mm_setzero_ps ：将寄存器置零， _mm_loadu_ps ：读取指定位置的数据到寄存器， _mm_mul_ps ：乘运算， _mm_add_ps ：加运算， _mm_storeu_ps ：将寄存器的数据存储会内存， _mm_set_ps1 ：将给定地址的一个数复制 4 份到寄存器。

以下代码在 M 和 N 两个方向循环展开（和 5 不同），一次性计算 16 个数据。

	#include <stdio.h>
	#include <emmintrin.h> // SSE2

	#define A(i,j) a[ (i)*lda + (j) ]
	#define B(i,j) b[ (i)*ldb + (j) ]
	#define C(i,j) c[ (i)*ldc + (j) ]

	/* Routine for computing C = A * B + C */
	void AddDot4x4_SSE2(int k, float a, int lda, float b, int ldb, float *c, int ldc){
	/* Point to the current elements in the four rows of A */
	float *a_0p_pntr = &A(0, 0);
	float *a_1p_pntr = &A(1, 0);
	float *a_2p_pntr = &A(2, 0);
	float *a_3p_pntr = &A(3, 0);

	__m128 c_p0_sum = _mm_setzero_ps();
	__m128 c_p1_sum = _mm_setzero_ps();
	__m128 c_p2_sum = _mm_setzero_ps();
	__m128 c_p3_sum = _mm_setzero_ps();

	register float a_0p_reg, a_1p_reg, a_2p_reg, a_3p_reg;

	for (int p = 0; p < k; ++p) {
	__m128 b_reg = _mm_loadu_ps(&B(p, 0));

	a_0p_reg = *a_0p_pntr++;
	a_1p_reg = *a_1p_pntr++;
	a_2p_reg = *a_2p_pntr++;
	a_3p_reg = *a_3p_pntr++;

	__m128 a_0p_vec = _mm_set_ps1(a_0p_reg);
	__m128 a_1p_vec = _mm_set_ps1(a_1p_reg);
	__m128 a_2p_vec = _mm_set_ps1(a_2p_reg);
	__m128 a_3p_vec = _mm_set_ps1(a_3p_reg);

	c_p0_sum = _mm_add_ps(c_p0_sum, _mm_mul_ps(b_reg, a_0p_vec));
	c_p1_sum = _mm_add_ps(c_p1_sum, _mm_mul_ps(b_reg, a_1p_vec));
	c_p2_sum = _mm_add_ps(c_p2_sum, _mm_mul_ps(b_reg, a_2p_vec));
	c_p3_sum = _mm_add_ps(c_p3_sum, _mm_mul_ps(b_reg, a_3p_vec));
	}

	float *c_pntr;
	__m128 c_reg;

	c_pntr = &C(0, 0);
	c_reg = _mm_loadu_ps(c_pntr);
	c_reg = _mm_add_ps(c_reg, c_p0_sum);
	_mm_storeu_ps(c_pntr, c_reg);

	c_pntr = &C(1, 0);
	c_reg = _mm_loadu_ps(c_pntr);
	c_reg = _mm_add_ps(c_reg, c_p1_sum);
	_mm_storeu_ps(c_pntr, c_reg);

	c_pntr = &C(2, 0);
	c_reg = _mm_loadu_ps(c_pntr);
	c_reg = _mm_add_ps(c_reg, c_p2_sum);
	_mm_storeu_ps(c_pntr, c_reg);

	c_pntr = &C(3, 0);
	c_reg = _mm_loadu_ps(c_pntr);
	c_reg = _mm_add_ps(c_reg, c_p3_sum);
	_mm_storeu_ps(c_pntr, c_reg);
	}

	void MY_MMult_4x4_10(int m, int n, int k, float a, int lda, float b, int ldb, float *c, int ldc){
	int i, j;
	for (j = 0; j < n; j += 4) { /* Loop over the columns of C, unrolled by 4 */
	for (i = 0; i < m; i += 4) { /* Loop over the rows of C */
	AddDot4x4_SSE2(k, &A(i, 0), lda, &B(0, j), ldb, &C(i, j), ldc);
	}
	}
	}

	void GemmAccelerateSimd(){
	int M = 16;
	int K = 64;
	int N = 16;
	float* MatriA = (float)malloc(sizeof(float) M*K);
	float* MatriB = (float)malloc(sizeof(float) K*N);
	float* MatriC = (float)malloc(sizeof(float) M*N);
	for(int index=0; index<MK; index<MK; index++){
	MatriA[index] = 1;
	}
	for(int index=0; index<K*N; index++){
	MatriB[index] = 1;
	}
	MY_MMult_4x4_10(M,N,K,MatriA,K,MatriB,N,MatriC,N);
	}

# 7. 矩阵分块

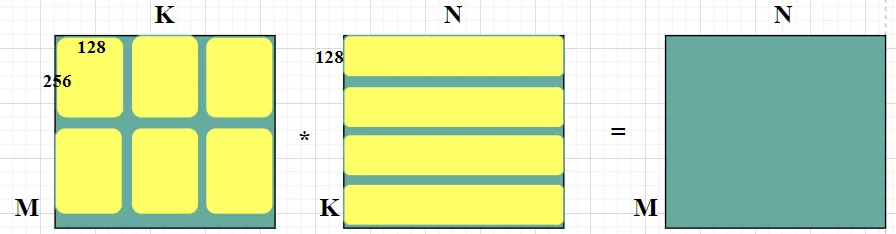

7.矩阵分块

分块技术（blocking）是一种常用的优化策略，旨在改善缓存命中率和数据局部性，进而提升计算密集型操作（如矩阵乘法）的性能。通过将大矩阵分割成较小的子矩阵（即 “块”），可以更好地利用 CPU 缓存，并减少内存访问延迟。

以下代码中， mc (Macro for m-block Count)：定义了处理矩阵行方向上的块大小， kc (Macro for k-block Count)：定义了处理矩阵列方向上的块大小。在整个代码中被用作循环边界或参数，用于控制矩阵分块的尺寸。他们将矩阵 A 分割乘 256128 的小块，将矩阵 B 分割成 128N 的小块，然后计算两个小块的矩阵乘运算。至于如何得到最终结果，可以参考《线性代数》知识：分块矩阵乘。

	#include <emmintrin.h> // SSE2
	#include <smmintrin.h> // SSE4.1, for _mm_dp_ps if needed
	#include <stdio.h>

	/* Block sizes */
	#define mc 256
	#define kc 128

	/* Create macros so that the matrices are stored in row-major order */

	#define A(i,j) a[ (i)*lda + (j) ]
	#define B(i,j) b[ (i)*ldb + (j) ]
	#define C(i,j) c[ (i)*ldc + (j) ]

	#define min(i, j) ((i) < (j) ? (i): (j))

	/* Routine for computing C = A * B + C */

	void AddDot4x4_SSE( int k, float a, int lda, float b, int ldb, float *c, int ldc )
	{
	/* Point to the current elements in the four rows of A */
	float *a_0p_pntr = &A(0, 0);
	float *a_1p_pntr = &A(1, 0);
	float *a_2p_pntr = &A(2, 0);
	float *a_3p_pntr = &A(3, 0);

	__m128 c_0p_sum = _mm_setzero_ps();
	__m128 c_1p_sum = _mm_setzero_ps();
	__m128 c_2p_sum = _mm_setzero_ps();
	__m128 c_3p_sum = _mm_setzero_ps();

	for (int p = 0; p < k; ++p) {
	__m128 b_reg = _mm_loadu_ps(&B(p, 0));

	float a_0p_reg = *a_0p_pntr++;
	float a_1p_reg = *a_1p_pntr++;
	float a_2p_reg = *a_2p_pntr++;
	float a_3p_reg = *a_3p_pntr++;

	c_0p_sum = _mm_add_ps(c_0p_sum, _mm_mul_ps(b_reg, _mm_set1_ps(a_0p_reg)));
	c_1p_sum = _mm_add_ps(c_1p_sum, _mm_mul_ps(b_reg, _mm_set1_ps(a_1p_reg)));
	c_2p_sum = _mm_add_ps(c_2p_sum, _mm_mul_ps(b_reg, _mm_set1_ps(a_2p_reg)));
	c_3p_sum = _mm_add_ps(c_3p_sum, _mm_mul_ps(b_reg, _mm_set1_ps(a_3p_reg)));
	}

	// Store results back into C matrix
	for (int row = 0; row < 4; ++row) {
	float* c_pntr = &C(row, 0);
	__m128 c_reg = _mm_loadu_ps(c_pntr);
	switch (row) {
	case 0: c_reg = _mm_add_ps(c_reg, c_0p_sum); break;
	case 1: c_reg = _mm_add_ps(c_reg, c_1p_sum); break;
	case 2: c_reg = _mm_add_ps(c_reg, c_2p_sum); break;
	case 3: c_reg = _mm_add_ps(c_reg, c_3p_sum); break;
	}
	_mm_storeu_ps(c_pntr, c_reg);
	}
	}

	void InnerKernel_SSE( int m, int n, int k, float a, int lda, float b, int ldb, float *c, int ldc ){
	for ( int j=0; j<n; j+=4 ){ /* Loop over the columns of C, unrolled by 4 */
	for ( int i=0; i<m; i+=4 ){ /* Loop over the rows of C */
	AddDot4x4_SSE( k, &A( i,0 ), lda, &B(0, j), ldb, &C( i,j ), ldc );
	}
	}
	}

	void MY_MMult_4x4_11_SSE( int m, int n, int k, float a, int lda, float b, int ldb, float *c, int ldc ) {
	for (int p = 0; p < k; p += kc) {
	int pb = min(k - p, kc);
	for (int i = 0; i < m; i += mc) {
	int ib = min(m - i, mc);
	InnerKernel_SSE(ib, n, pb, &A(i, p), lda, &B(p, 0), ldb, &C(i, 0), ldc);
	}
	}
	}

	void GemmAccelerateSimd(){
	int M = 16;
	int K = 64;
	int N = 16;
	float* MatriA = (float)malloc(sizeof(float) M*K);
	float* MatriB = (float)malloc(sizeof(float) K*N);
	float* MatriC = (float)malloc(sizeof(float) M*N);
	for(int index=0; index<MK; index<MK; index++){
	MatriA[index] = 1;
	}
	for(int index=0; index<K*N; index++){
	MatriB[index] = 1;
	}
	MY_MMult_4x4_11_SSE(M,N,K,MatriA,K,MatriB,N,MatriC,N);
	}

# 8. 数据 Pack

在上面的优化中可以发现，在矩阵乘法的计算中，无论是行主序还是列主序，始终有一个矩阵的内存是没办法连续访问的。为了改善这个情况，可以执行数据 Pack，使矩阵 A 和矩阵 B 的内存变成连续的。

下面代码，在矩阵运算之前将矩阵 B 按照访问顺序重新排布，存储在 packedB 中。

是否有速度提升，需要在目标平台上实测，因为算法提升了矩阵运算效率，但是增加了 pack 时间。

	#include <emmintrin.h> // SSE2
	#include <smmintrin.h> // SSE4.1, for _mm_dp_ps if needed
	#include <stdio.h>

	/* Block sizes */
	#define mc 256
	#define kc 128

	/* Create macros so that the matrices are stored in row-major order */

	#define A(i,j) a[ (i)*lda + (j) ]
	#define B(i,j) b[ (i)*ldb + (j) ]
	#define C(i,j) c[ (i)*ldc + (j) ]

	#define min(i, j) ((i) < (j) ? (i): (j))

	/* Routine for computing C = A * B + C */

	void PackMatrixB_SSE(int k, float b, int ldb, float b_to) {
	for (int j = 0; j < k; ++j) {
	float *b_ij_pntr = &B(j, 0);
	*b_to++ = b_ij_pntr[0];
	*b_to++ = b_ij_pntr[1];
	*b_to++ = b_ij_pntr[2];
	*b_to++ = b_ij_pntr[3];
	}
	}

	void AddDot4x4_SSE(int k, float a, int lda, float b, int ldb, float *c, int ldc) {
	/* Point to the current elements in the four rows of A */
	float *a_0p_pntr = &A(0, 0);
	float *a_1p_pntr = &A(1, 0);
	float *a_2p_pntr = &A(2, 0);
	float *a_3p_pntr = &A(3, 0);

	__m128 c_0p_sum = _mm_setzero_ps();
	__m128 c_1p_sum = _mm_setzero_ps();
	__m128 c_2p_sum = _mm_setzero_ps();
	__m128 c_3p_sum = _mm_setzero_ps();

	for (int p = 0; p < k; ++p) {
	__m128 b_reg = _mm_loadu_ps(b); // Load 4 floats from b
	b += 4;

	float a_0p_reg = *a_0p_pntr++;
	float a_1p_reg = *a_1p_pntr++;
	float a_2p_reg = *a_2p_pntr++;
	float a_3p_reg = *a_3p_pntr++;

	c_0p_sum = _mm_add_ps(c_0p_sum, _mm_mul_ps(b_reg, _mm_set1_ps(a_0p_reg)));
	c_1p_sum = _mm_add_ps(c_1p_sum, _mm_mul_ps(b_reg, _mm_set1_ps(a_1p_reg)));
	c_2p_sum = _mm_add_ps(c_2p_sum, _mm_mul_ps(b_reg, _mm_set1_ps(a_2p_reg)));
	c_3p_sum = _mm_add_ps(c_3p_sum, _mm_mul_ps(b_reg, _mm_set1_ps(a_3p_reg)));
	}

	// Store results back into C matrix
	for (int row = 0; row < 4; ++row) {
	float* c_pntr = &C(row, 0);
	__m128 c_reg = _mm_loadu_ps(c_pntr);
	switch (row) {
	case 0: c_reg = _mm_add_ps(c_reg, c_0p_sum); break;
	case 1: c_reg = _mm_add_ps(c_reg, c_1p_sum); break;
	case 2: c_reg = _mm_add_ps(c_reg, c_2p_sum); break;
	case 3: c_reg = _mm_add_ps(c_reg, c_3p_sum); break;
	}
	_mm_storeu_ps(c_pntr, c_reg);
	}
	}

	void InnerKernel_SSE(int m, int n, int k, float a, int lda, float b, int ldb, float *c, int ldc) {
	int i, j;
	float packedB[k * n];

	for (j = 0; j < n; j += 4) { /* Loop over the columns of C, unrolled by 4 */
	PackMatrixB_SSE(k, &B(0, j), ldb, &packedB[j * k]);
	for (i = 0; i < m; i += 4) { /* Loop over the rows of C */
	AddDot4x4_SSE(k, &A(i, 0), lda, &packedB[j * k], 4, &C(i, j), ldc);
	}
	}
	}
	void MY_MMult_4x4_12_SSE(int m, int n, int k, float a, int lda, float b, int ldb, float *c, int ldc) {
	int i, p, pb, ib;
	for (p = 0; p < k; p += kc) {
	pb = min(k - p, kc);
	for (i = 0; i < m; i += mc) {
	ib = min(m - i, mc);
	InnerKernel_SSE(ib, n, pb, &A(i, p), lda, &B(p, 0), ldb, &C(i, 0), ldc);
	}
	}
	}

	void GemmAccelerateSimd(){
	int M = 16;
	int K = 64;
	int N = 16;
	float* MatriA = (float)malloc(sizeof(float) M*K);
	float* MatriB = (float)malloc(sizeof(float) K*N);
	float* MatriC = (float)malloc(sizeof(float) M*N);
	for(int index=0; index<MK; index<MK; index++){
	MatriA[index] = 1;
	}
	for(int index=0; index<K*N; index++){
	MatriB[index] = 1;
	}
	MY_MMult_4x4_12_SSE(M,N,K,MatriA,K,MatriB,N,MatriC,N);
	}

#9. 进一步 pack

将 A 和 B 两个矩阵都进行 pack。

	#include <emmintrin.h> // SSE2
	#include <smmintrin.h> // SSE4.1, for _mm_dp_ps if needed
	#include <stdio.h>

	/* Block sizes */
	#define mc 256
	#define kc 128

	/* Create macros so that the matrices are stored in row-major order */

	#define A(i,j) a[ (i)*lda + (j) ]
	#define B(i,j) b[ (i)*ldb + (j) ]
	#define C(i,j) c[ (i)*ldc + (j) ]

	#define min(i, j) ((i) < (j) ? (i): (j))

	/* Routine for computing C = A * B + C */

	void PackMatrixB_SSE(int k, float b, int ldb, float b_to) {
	for (int j = 0; j < k; ++j) {
	float *b_ij_pntr = &B(j, 0);
	*b_to++ = b_ij_pntr[0];
	*b_to++ = b_ij_pntr[1];
	*b_to++ = b_ij_pntr[2];
	*b_to++ = b_ij_pntr[3];
	}
	}

	void PackMatrixA_SSE(int k, float a, int lda, float a_to) {
	for (int i = 0; i < k; ++i) {
	*a_to++ = A(0, i);
	*a_to++ = A(1, i);
	*a_to++ = A(2, i);
	*a_to++ = A(3, i);
	}
	}
	void AddDot4x4_SSE(int k, float a, int lda, float b, int ldb, float *c, int ldc) {
	__m128 c_0p_sum = _mm_setzero_ps();
	__m128 c_1p_sum = _mm_setzero_ps();
	__m128 c_2p_sum = _mm_setzero_ps();
	__m128 c_3p_sum = _mm_setzero_ps();

	for (int p = 0; p < k; ++p) {
	__m128 b_reg = _mm_loadu_ps(b); // Load 4 floats from b
	b += 4;

	__m128 a_reg = _mm_loadu_ps(a); // Load 4 floats from a
	a += 4;

	c_0p_sum = _mm_add_ps(c_0p_sum, _mm_mul_ps(b_reg, _mm_shuffle_ps(a_reg, a_reg, _MM_SHUFFLE(0, 0, 0, 0))));
	c_1p_sum = _mm_add_ps(c_1p_sum, _mm_mul_ps(b_reg, _mm_shuffle_ps(a_reg, a_reg, _MM_SHUFFLE(1, 1, 1, 1))));
	c_2p_sum = _mm_add_ps(c_2p_sum, _mm_mul_ps(b_reg, _mm_shuffle_ps(a_reg, a_reg, _MM_SHUFFLE(2, 2, 2, 2))));
	c_3p_sum = _mm_add_ps(c_3p_sum, _mm_mul_ps(b_reg, _mm_shuffle_ps(a_reg, a_reg, _MM_SHUFFLE(3, 3, 3, 3))));
	}

	// Store results back into C matrix
	for (int row = 0; row < 4; ++row) {
	float* c_pntr = &C(row, 0);
	__m128 c_reg = _mm_loadu_ps(c_pntr);
	switch (row) {
	case 0: c_reg = _mm_add_ps(c_reg, c_0p_sum); break;
	case 1: c_reg = _mm_add_ps(c_reg, c_1p_sum); break;
	case 2: c_reg = _mm_add_ps(c_reg, c_2p_sum); break;
	case 3: c_reg = _mm_add_ps(c_reg, c_3p_sum); break;
	}
	_mm_storeu_ps(c_pntr, c_reg);
	}
	}

	void InnerKernel_SSE(int m, int n, int k, float a, int lda, float b, int ldb, float *c, int ldc) {
	int i, j;
	float packedA[m * k];
	float packedB[k * n];

	for (j = 0; j < n; j += 4) { /* Loop over the columns of C, unrolled by 4 */
	PackMatrixB_SSE(k, &B(0, j), ldb, packedB + j * k);
	for (i = 0; i < m; i += 4) { /* Loop over the rows of C */
	if (0 == (j % 4)) {
	PackMatrixA_SSE(k, &A(i, 0), lda, packedA + i * k);
	}
	AddDot4x4_SSE(k, packedA + i * k, k, packedB + j * k, 4, &C(i, j), ldc);
	}
	}
	}

	void MY_MMult_4x4_13_SSE(int m, int n, int k, float a, int lda, float b, int ldb, float *c, int ldc) {
	int i, p, pb, ib;
	for (p = 0; p < k; p += kc) {
	pb = min(k - p, kc);
	for (i = 0; i < m; i += mc) {
	ib = min(m - i, mc);
	InnerKernel_SSE(ib, n, pb, &A(i, p), lda, &B(p, 0), ldb, &C(i, 0), ldc);
	}
	}
	}

	void GemmAccelerateSimd(){
	int M = 16;
	int K = 64;
	int N = 16;
	float* MatriA = (float)malloc(sizeof(float) M*K);
	float* MatriB = (float)malloc(sizeof(float) K*N);
	float* MatriC = (float)malloc(sizeof(float) M*N);
	for(int index=0; index<MK; index<MK; index++){
	MatriA[index] = 1;
	}
	for(int index=0; index<K*N; index++){
	MatriB[index] = 1;
	}
	MY_MMult_4x4_13_SSE(M,N,K,MatriA,K,MatriB,N,MatriC,N);
	}

# 后记

本博客目前以及可预期的将来都不会支持评论功能。各位大侠如若有指教和问题，可以在我的 github 项目或随便一个项目下提出 issue，或者知乎私信，并指明哪一篇博客，我看到一定及时回复，感激不尽！
