# 前言

本篇介绍外部编译器:C 语言编译器 ccompiler 是什么。

一些拓展链接。如果想多了解一些编译相关的内容,提高对 relay IR 的理解,可以学习 《【编译器】使用 llvm 编译自定义语言【1】构建 AST》《【TVM】通过代码学习编译流程【2】模型转换》《【编译器】使用 llvm 编译自定义语言【3】编译 object》《My First Language Frontend with LLVM Tutorial》 等。想了解更多 TVM,可以阅读《深度学习编译器 TVM 代码串讲》

作为初学者,错误在所难免,还望不吝赐教。

# 例子

如何编译 TVM,可以参考文章 [【TVM】通过代码学习编译流程【1】必要知识](https://forcheetah.github.io/2024/10/10/tvm01/)中的编译部分。本文默认读者已经能够编译和使用 TVM。

TVM 的外部编译器例子: ccompiler 是一个简单的、仅支持 + - * 运算的、编译为 C 源码的外部编译器。

先看看 TVM 对 ccompiler 编译器的注册。位于 src/relay/backend/contrib/codegen_c/target.cc

TVM 在这里注册了能够生成 C 源码,供本地 C 编译器编译的外部 CodeGen ccompiler。而交由 ccompiler 编译的函数需要被标记为 PrimitiveCompiler=ccompilerPrimitive 是告诉编译器该函数是原始不可分割的,relay 阶段不要分解和优化。 Compiler=ccompiler 是指定 CodeGen 为 ccompiler。

/*!
 * \brief This demonstration external codegen target emits C/C++ for compilation by the native c
 * compiler on CPU.
 *  - Patterns: None, functions must be explicitly marked as "Primitive" and "Compiler=ccompiler".
 *  - Custom compiler: relay/backend/contrib/codegen_c/codegen.cc
 */
TVM_REGISTER_TARGET_KIND("ccompiler", kDLCPU)
    .set_attr<Bool>(tvm::attr::kIsExternalCodegen, Bool(true))
    .set_attr<relay::transform::FTVMRelayToTIR>(tvm::attr::kRelayToTIR, CCompilerPass())
    // Value is prepended to every output CModule.
    .add_attr_option<String>("header", String(""));

接下来用一个简单的例子调用 ccompiler 生成 C 语言,并编译和执行。

import tvm
import numpy as np
from tvm import relay
import os
from tvm.contrib import graph_executor
from collections import OrderedDict
def update_lib(lib):  # lib : llvmModuleNode   ret_.mod
    kwargs = {}
    kwargs["options"] = ["-O2", "-std=c++17"]
    tmp_path = "/home/xianmu/temp/repare_test/"
    lib_name = "lib.so"
    lib_path = os.path.join(tmp_path, lib_name)
    lib.export_library(lib_path, fcompile=False, workspace_dir='/home/user/tempworkspace', **kwargs)
    lib = tvm.runtime.load_module(lib_path)
    return lib
def set_external_func_attr(func, compiler, ext_symbol):
    func = func.with_attr("Primitive", tvm.tir.IntImm("int32", 1))
    func = func.with_attr("Compiler", compiler)
    func = func.with_attr("global_symbol", ext_symbol)
    return func
def prepare_graph_lib(base_path):
    x = relay.var("x", shape=(5, 5), dtype="float32")
    y = relay.var("y", shape=(5, 5), dtype="float32")
    x0 = relay.var("x0", shape=(5, 5), dtype="float32")
    y0 = relay.var("y0", shape=(5, 5), dtype="float32")
    params = {"y0": np.ones((5, 5), dtype="float32")}
    f = relay.Function([x0, y0], x0 * (x0 + y0) - y0)
    f = set_external_func_attr(f, "ccompiler", "ccompiler_01")  # 添加 `Primitive` 和 `Compiler=ccompiler` 标记
    call = relay.Call(f, [x, y])
    mod = tvm.IRModule.from_expr(call)
    print("----------------------------------------------")
    print(mod.script())
    print("----------------------------------------------")
    # 编译 Relay->TIR
    target = tvm.target.Target("llvm")
    with tvm.transform.PassContext(opt_level=3):
        compiled_lib = relay.build(mod, target, params=params)  # const_loader
    print("=======================================================================================================")
    device = tvm.cpu()
    lib = update_lib(compiled_lib.get_lib())
    rt_mod = tvm.contrib.graph_executor.create(compiled_lib.get_executor_config(), lib, device)  # runtime_mod  图执行器
    # 模型执行
    x_data = np.random.rand(5, 5).astype("float32")
    y_data = np.random.rand(5, 5).astype("float32")
    inputs = OrderedDict([
            ("y", y_data),
            ("x", x_data),
    ])
    for name, data in inputs.items():
        rt_mod.set_input(name, data)
    rt_mod.run()
    out = tvm.nd.empty((5, 5), device=device)
    out = rt_mod.get_output(0, out)
    # 保存模型
    dylib_path = os.path.join(base_path, "test_ccompiler.so")
    compiled_lib.get_lib().export_library(dylib_path)
if __name__ == "__main__":
    curr_path = "/home/xianmu/temp/repare_test/"
    os.environ["TVM_HOME"] = "/home/xianmu/TVM/tvm/"
    prepare_graph_lib(curr_path)

这段代码使用 relay 语言搭建了仅包含加减乘的模型 x*(x+y)-y ,并对其进行编译和调用执行。

可以看到 set_external_func_attr() 函数为模型添加 PrimitiveCompiler=ccompiler 标记,以告知 TVM 模型中的该函数使用 ccompiler 生成 code。

以下是打印模型:

def @main(%x: Tensor[(5, 5), float32], %y: Tensor[(5, 5), float32]) {
  %2 = fn (%x0: Tensor[(5, 5), float32], %y0: Tensor[(5, 5), float32], Primitive=1, Compiler="ccompiler", global_symbol="ccompiler_01") {
    %0 = add(%x0, %y0);
    %1 = multiply(%x0, %0);
    subtract(%1, %y0)
  };
  %2(%x, %y)
}

根据我们构建的模型,输出是个 5*5 的 tensor,不过由于输入都是随机的,所以每次结果也不一样。

************** result **************
 [[-0.2741713   0.08935148 -0.04881942 -0.02653596  0.6241337 ]
 [ 0.6122713  -0.62298256  0.68201226  0.37773138 -0.4962681 ]
 [-0.5679778   0.28375486  0.38151044 -0.41397965 -0.3218666 ]
 [-0.24529386 -0.4346298  -0.10323387 -0.6108544  -0.22057068]
 [-0.44894195  0.16438246 -0.47126824  0.546167   -0.8994445 ]]

# ccompiler

我们直接从 ccompiler 的 Codegen 结果来了解 ccompiler 这个编译器。

编译过程中如果没有指定工作空间,TVM 会创建临时空间存放生成的 C 源码,并在用完之后释放掉临时空间。为了看到 ccompiler 生成的 C 源码,需要指定工作空间,即上述 Python 例子中:

lib.export_library(lib_path, fcompile=False, workspace_dir='/home/user/tempworkspace', **kwargs)

工作空间下有三个生成文件: lib0.clib1.odevc.o

其中 lib1.oConstLoaderModule 生成,可能用于常量的加载。

devc.o 和后端指定为 llvm 这种设备有关。

lib0.c 就是 ccompiler 生成的 C 源码:

#include <stdio.h>  // 从 1 到 23 行是固定输出代码(头文件和宏定义)
#include <stdlib.h>
#include  <string.h>
#include <tvm/runtime/c_runtime_api.h>
#include <tvm/runtime/c_backend_api.h>
    #define CSOURCE_BINARY_OP_1D(p_ID_, p_OP_, p_DIM1_, p_DTYPE)       \
      void p_ID_(p_DTYPE* a, p_DTYPE* b, p_DTYPE* out) {    \
        for (int64_t i = 0; i < p_DIM1_; ++i) {                        \
          out[i] = a[i] p_OP_ b[i];                                    \
        }                                                              \
      }
    #define CSOURCE_BINARY_OP_2D(p_ID_, p_OP_, p_DIM1_, p_DIM2_, p_DTYPE)  \
      void p_ID_(p_DTYPE* a, p_DTYPE* b, p_DTYPE* out) {        \
        for (int64_t i = 0; i < p_DIM1_; ++i) {                            \
          for (int64_t j = 0; j < p_DIM2_; ++j) {                          \
            int64_t k = i * p_DIM2_ + j;                                   \
            out[k] = a[k] p_OP_ b[k];                                      \
          }                                                                \
        }                                                                  \
      }

CSOURCE_BINARY_OP_2D(ccompiler_01_0, -, 5, 5, float); // 根据AST生成所有Call调用的函数
CSOURCE_BINARY_OP_2D(ccompiler_01_1, *, 5, 5, float);
CSOURCE_BINARY_OP_2D(ccompiler_01_2, +, 5, 5, float);
void ccompiler_01_(float* x0, float* y0, float* out0) {  // 执行过程
  float* buf_0 = (float*)malloc(4 * 25);
  float* buf_1 = (float*)malloc(4 * 25);
  float* buf_2 = (float*)malloc(4 * 25);
  ccompiler_01_2(x0, y0, buf_0);  // 依次调用函数
  ccompiler_01_1(x0, buf_0, buf_1);
  ccompiler_01_0(buf_1, y0, buf_2);
  memcpy(out0, buf_2, 4 * 25);
  free(buf_0);
  free(buf_1);
  free(buf_2);
}
int ccompiler_01_wrapper_(DLTensor* arg0,  // 函数封装
	DLTensor* arg1,
	DLTensor* out0) {
  ccompiler_01_((float*)(arg0->data),
  (float*)(arg1->data),
  (float*)(out0->data));
  return 0;
}
#ifdef __cplusplus
extern "C" {
#endif
TVM_DLL int32_t ccompiler_01(TVMValue* args, int* type_code, int num_args, TVMValue* out_value, int* out_type_code) {
  DLTensor* arg0 = (DLTensor*)(((TVMValue*)args)[0].v_handle);
  DLTensor* arg1 = (DLTensor*)(((TVMValue*)args)[1].v_handle);
  DLTensor* ret2 = (DLTensor*)(((TVMValue*)args)[2].v_handle);
  ccompiler_01_wrapper_(arg0,arg1,ret2);
  return 0;
}
#ifdef __cplusplus
}
#endif

以上就是 ccompiler 编译器根据我们模型而生成的 C 源码。接下来结合 x*(x+y)-y 模型生成的 C 源码学习一下 ccompiler 代码:

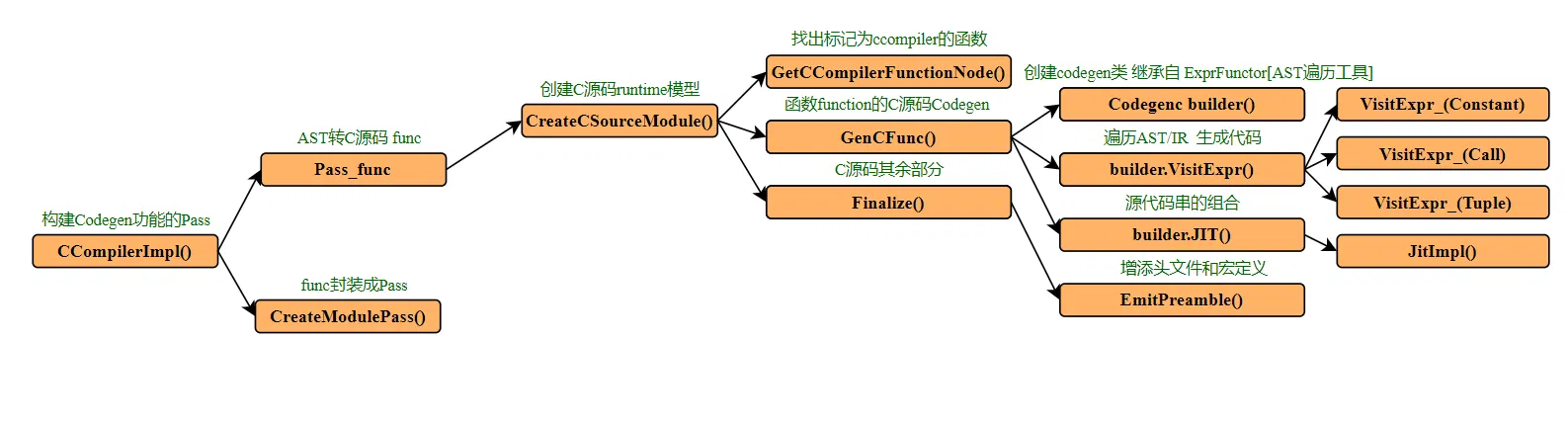

ccompiler调用流程

ccompiler 代码主要位于 src/relay/backend/contrib/codegen_c/codegen.cc ,它由函数 CCompilerImpl() 封装成一个 Pass

从这个流程图中可以知道这个 pass 主要功能位于 builder.VisitExpr() 函数,它通过遍历抽象语法树 AST/Relay IR,生成 C 语言代码字符串。这个类是 CodegenC ,它继承自 TVM 提供的 AST/IR 遍历工具类 ExprFunctor

我们知道遍历抽象语法树是编译器最基本的功能,为了方便,TVM 已经提供了用于遍历的工具类 ExprFunctor ,它主要提供了 VisitExpr 接口,并根据 Expr 的具体类型转发到对应的 VisitExpr_ 。我们只需要继承 ExprFunctor ,并重写 Expr 对应的 VisitExpr_ 方法,就可以方便得实现特定 Expr 的访问、修改等。大家可以阅读《深度学习编译器 TVM 代码串讲》以了解更多。

再回到 ccompiler 编译器,其最主要重写的方法是 VisitExpr_(const CallNode* call) ,也就是将调用 Call 生成对应的 C 源代码。

std::vector<Output> VisitExpr_(const CallNode* call) override {
    std::ostringstream macro_stream;
    std::ostringstream decl_stream;
    std::ostringstream buf_stream;
    std::string func_name = ext_func_id_ + "_" + std::to_string(func_idx++);
    // Make function declaration
    macro_stream << "CSOURCE_BINARY_OP_" << call->args.size() << "D(" << func_name << ", ";  // 生成函数 CSOURCE_BINARY_OP_2D (ccompiler_01_0, -, 5, 5, float);
    if (backend::IsOp(call, "add")) {
      macro_stream << "+";
    } else if (backend::IsOp(call, "subtract")) {
      macro_stream << "-";
    } else if (backend::IsOp(call, "multiply")) {
      macro_stream << "*";
    } else {
      LOG(FATAL) << "Unrecognized op";
    }
    auto in_shape = backend::GetShape(call->args[0]->checked_type());
    for (size_t i = 0; i < in_shape.size(); ++i) {
      macro_stream << ", " << in_shape[i];
    }
    const auto* type_node = call->checked_type().as<TensorTypeNode>();
    ICHECK(type_node);
    const auto& dtype = GetDtypeString(type_node);
    macro_stream << ", " << dtype;
    macro_stream << ");";
    func_decl_.push_back(macro_stream.str());
    // Make function call when visiting arguments
    bool first = true;    // 生成函数调用:ccompiler_01_2 (x0, y0, buf_0);
    decl_stream << func_name << "(";
    for (size_t i = 0; i < call->args.size(); ++i) {
      auto res = VisitExpr(call->args[i]);
      for (auto out : res) {
        if (!first) {
          decl_stream << ", ";
        }
        first = false;
        decl_stream << out.name;
      }
    }
    std::string out = "buf_" + std::to_string(buf_idx_++);  // 生成内存分配 :  float* buf_0 = (float*) malloc (4 * 25);
    auto out_shape = backend::GetShape(call->checked_type());
    int out_size = 1;
    for (size_t i = 0; i < out_shape.size(); ++i) {
      out_size *= out_shape[i];
    }
    buf_stream << dtype << "* " << out << " = (" << dtype << "*)malloc(4 * " << out_size << ");";
    buf_decl_.push_back(buf_stream.str());
    decl_stream << ", " << out << ");";
    ext_func_body_.push_back(decl_stream.str());
    // Update output buffer
    // Note C codegen only handles TensorType. Therefore, we don't flatten
    // tuples and only return a single vaule.
    Output output;
    output.name = out;
    output.dtype = dtype;
    output.need_copy = true;
    output.size = out_size;
    return {output};
  }

VisitExpr_(const CallNode* call) 函数只是将一些 C 源码字符串,分门别类地存储起来,后续会将其整合成完整的 C 源码。比如流程中 Finalize() 函数,添加了头文件宏定义等,并将所有的代码整合起来。

# 后续编译和执行

获得 lib0.clib1.odevc.o 文件之后的流程:TVM 会生成如下指令,调用系统中的 C 语言编译器,将 lib0.clib1.odevc.o 编译成动态库。可以见工程 python/tvm/runtime/module.py,函数 export_library() 结尾 fcompile() 函数调用的指令。

['/usr/bin/g++', '-shared', '-fPIC', '-o', '/home/user/tempworkspace/test_ccompiler.so', '/home/user/tempworkspace/lib0.c', '/home/user/tempworkspace/lib1.o', '/home/user/tempworkspace/devc.o', '-I/home/user/TVM/include', '-I/home/user/TVM/3rdparty/dlpack/include', '-I/home/user/TVM/3rdparty/dmlc-core/include']

之后 TVM 重新加载动态库,并执行,具体还是见文章开头的 Python 脚本。

# 后记

When I say you’re mine,I don’t mean you belong to me.
I mean you belong with me.
Like the tide belongs to the moon.
Like the stars belongs to the sky.
Like the breath belongs to lungs.
When I say I want you, I don’t mean to keep you locked away.
I mean I want to witness your life unfold.
I wanna watch you bloom. The way the sun leans toward flowers.
The way a window quietly cradles the seasons.
Never interfering, just holding space.
When I say I’ll never let you go,
I don’t mean, I’ll grip too tightly.
I mean I’ll stand beside you.
The way the shore meets the sea.
Sometimes calm, sometimes wild.
But always returning, always near.
Because love isn’t about possession.
It’s about presence.
It’s about choosing each other over and over.
Even when the world gives a thousand reasons not to.
So, really, when I say you’re mine, what I mean is, I’m yours.
